Bushing
Winding Machine
Engineered for condenser-core winding applications with controlled heating, hydraulic pressure and configurable automation — built around your production requirements.
Built around precision, control & production needs.
Viva Engineering focuses on industrial engineering and machinery solutions. This product page presents the Bushing Winding Machine using the supplied company identity, factory visuals and machine photographs.
One machine. A complete winding platform.
Swipe through the supplied machine visuals and see the core capabilities highlighted beside the product.

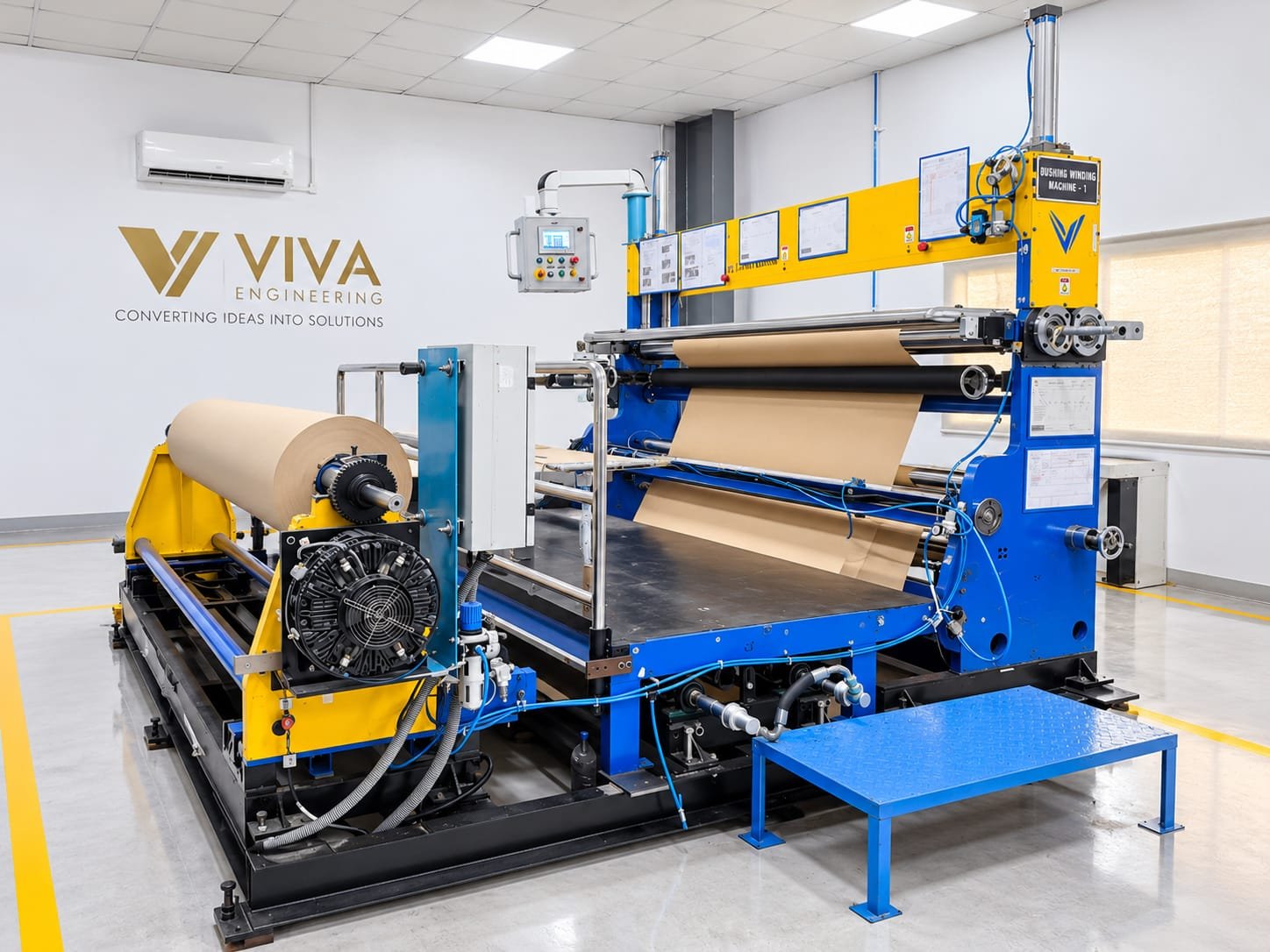

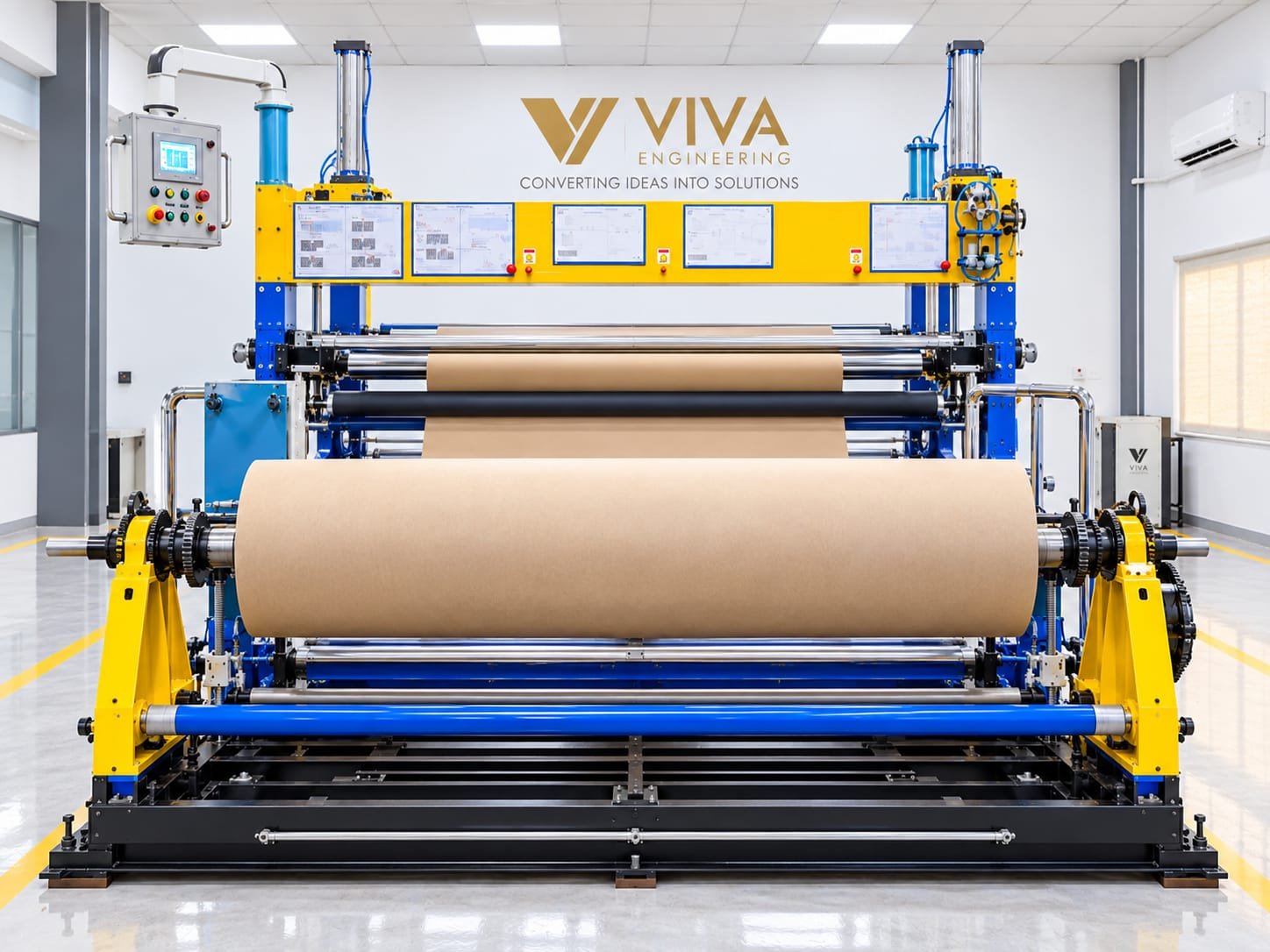

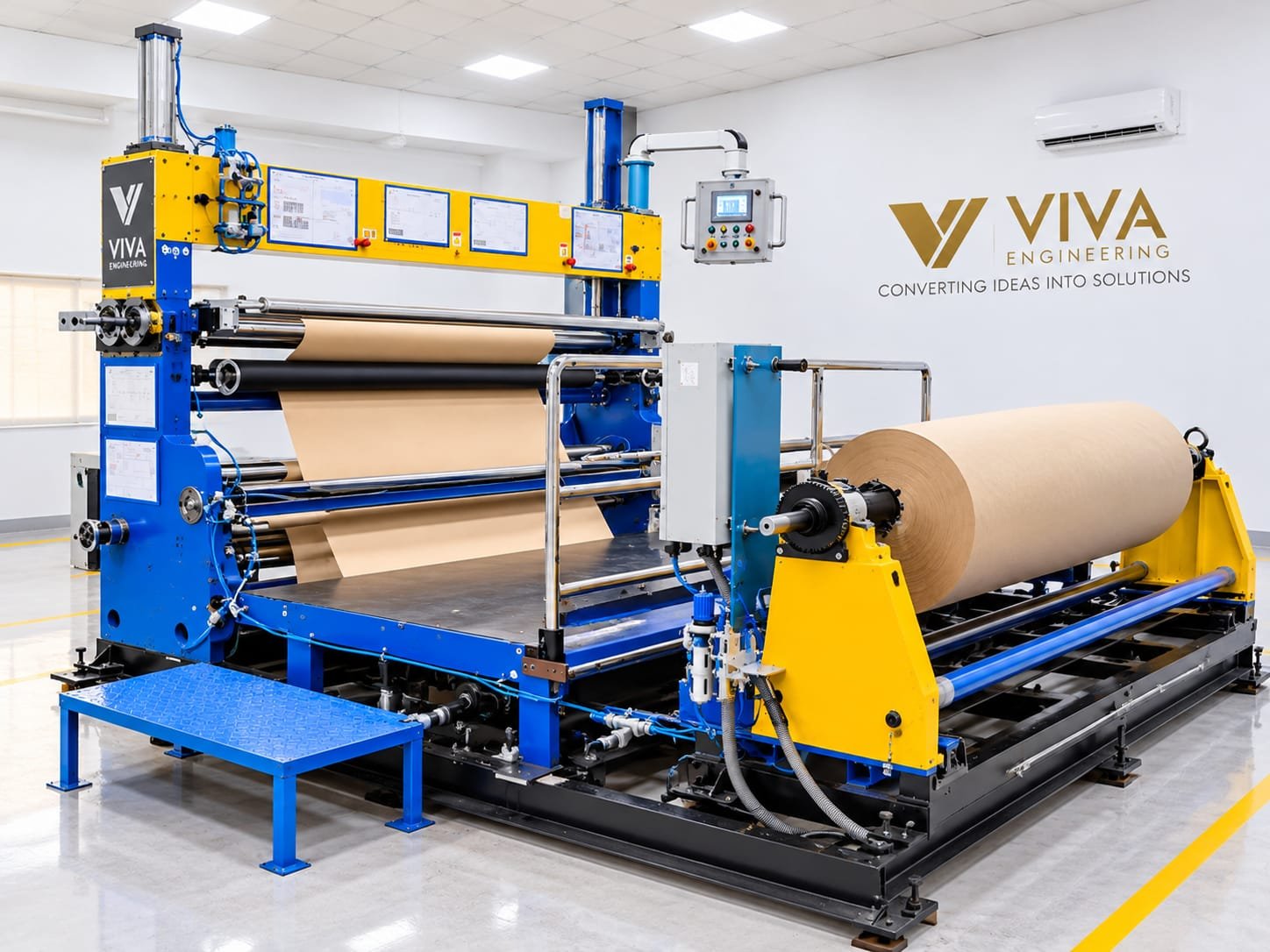

Bushing Winding Machine
Designed to wind condenser cores for OIP bushings using kraft or crepe paper and aluminium foil. Machine configuration can be adapted for different lengths and automation levels.
Designed for controlled, repeatable winding.
Core functions and optional systems can be configured around the customer's machine requirements.
Precision Frame
Solid steel frame supports the heated rollers, pressure assembly and cutter assembly.
Heating Control
Bottom rollers are heated with thermic oil; top pressure roller heating is available as an option.
Hydraulic Pressure
Adjustable pressing force is controlled hydraulically and maintained through the winding process.
Foil Positioning
Foil guide and diameter measurement support accurate aluminium foil insertion.
Cutting System
Paper can be cut to required lengths with straight, step or cone cutting options.
Optional IR Heating
Infrared preheating can help dry paper during winding and reduce autoclave drying time.
From paper feed to controlled winding.
A clean visual explanation of the primary operating flow.
Decoiling
Paper is supplied through the un-coiler with controlled braking and load-cell feedback.
Preheating & Rollers
Controlled heated rollers support the winding process and moisture reduction.
Pressure-Controlled Winding
Hydraulic pressure and guided foil insertion support controlled condenser-core winding.
Precision Cutting
Cutting can be configured for straight, step or cone ends according to the requirement.

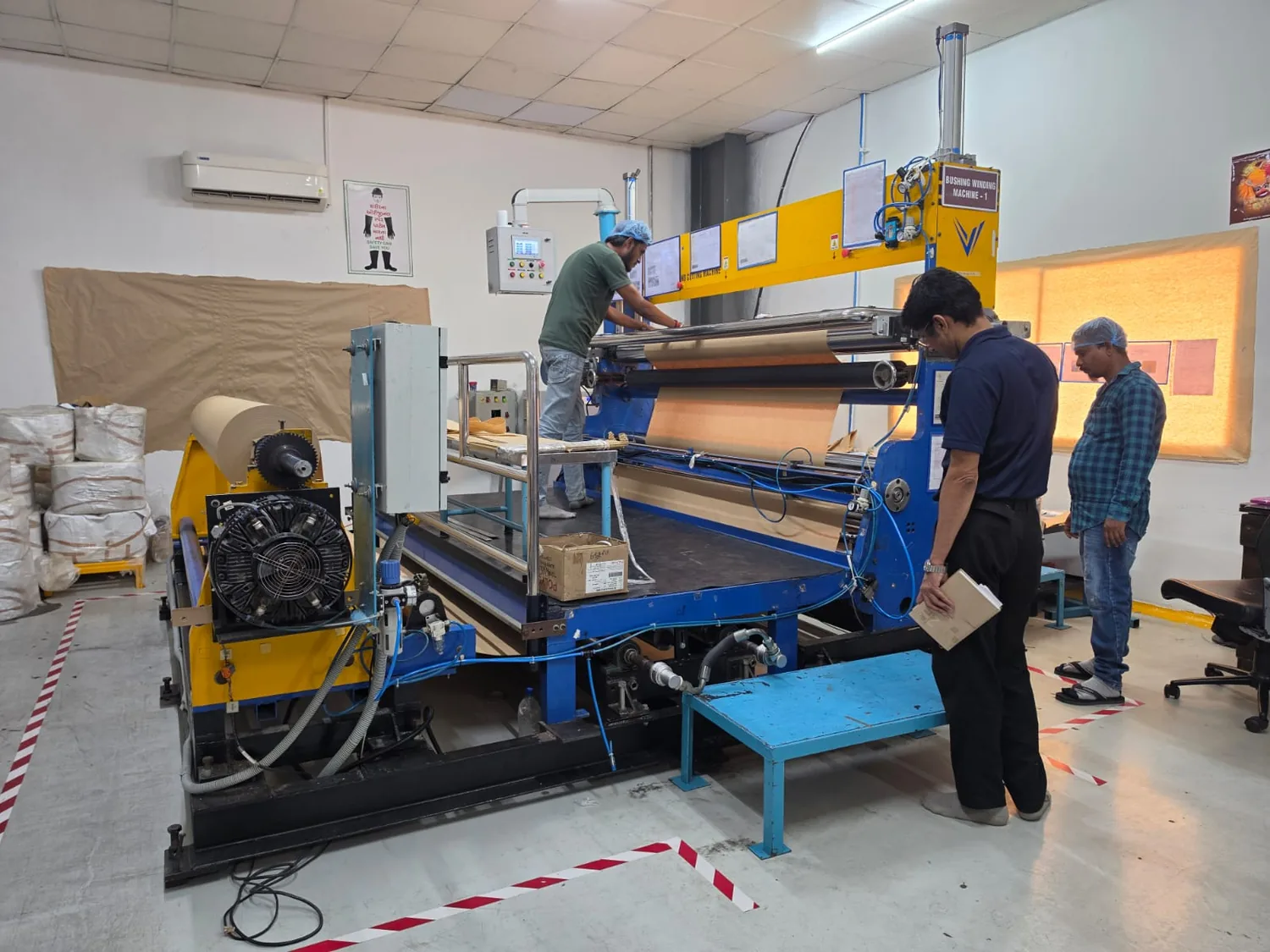

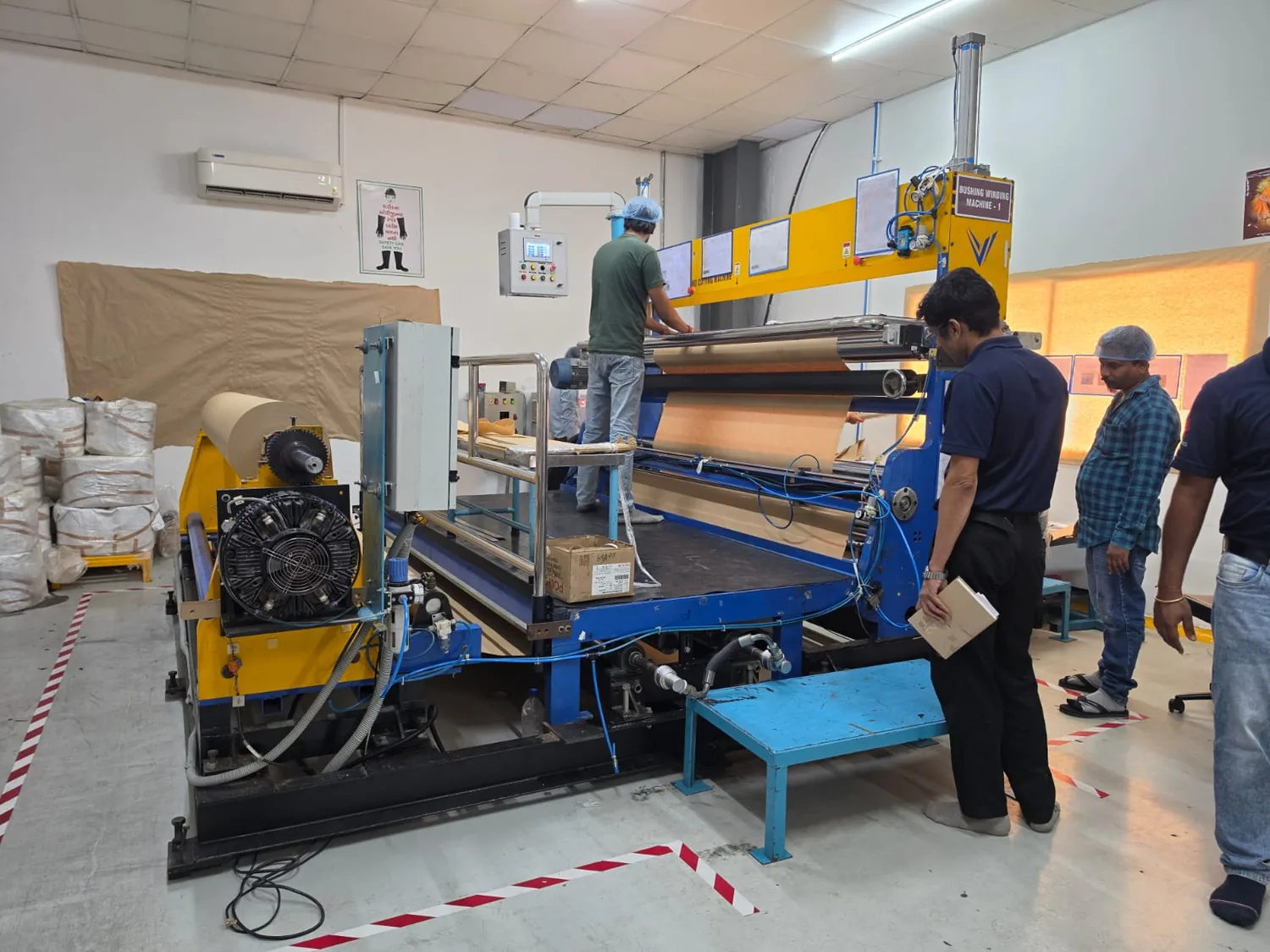

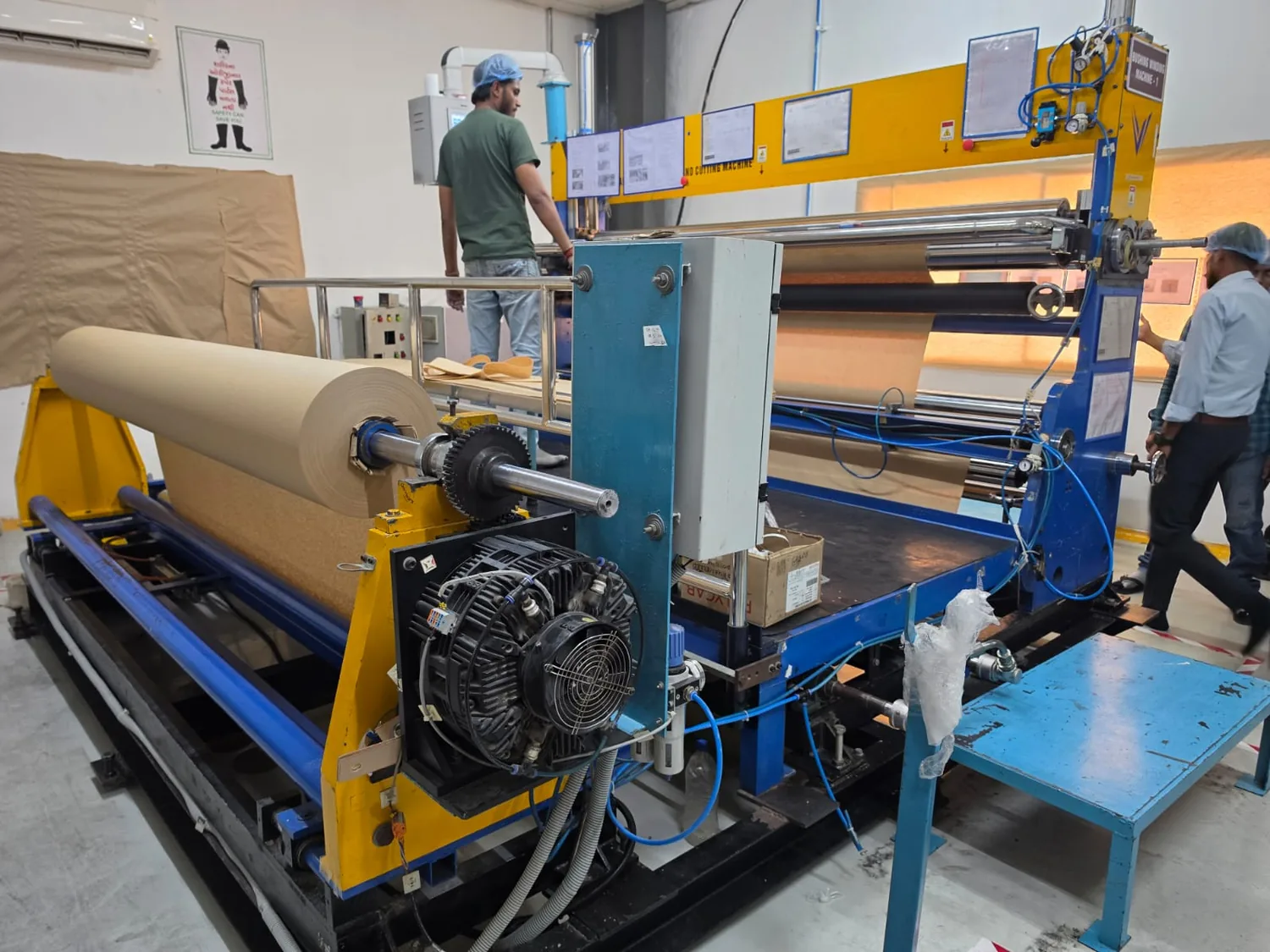

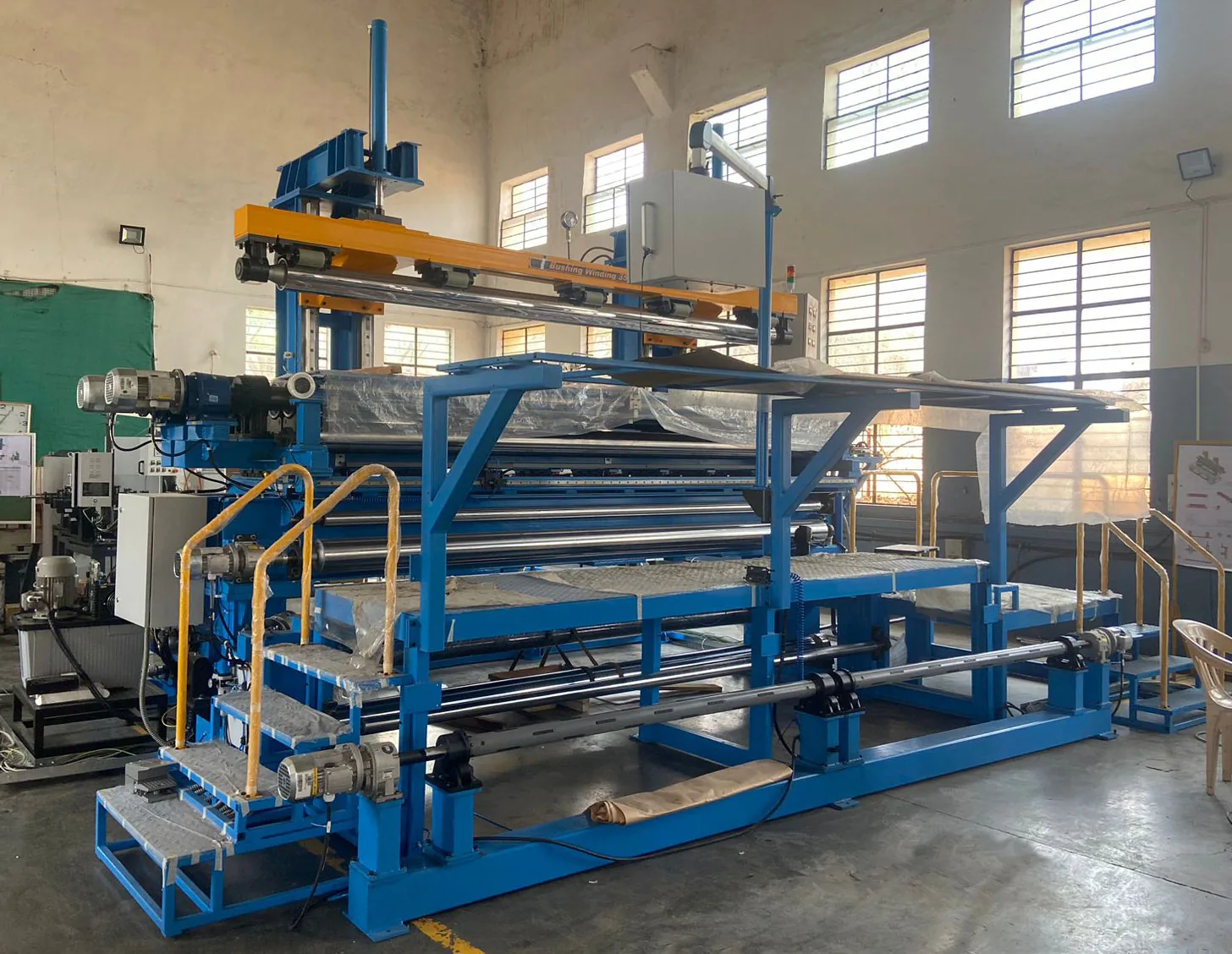

Real production visuals. Real engineering presence.
Let's discuss your winding requirement.
For machine configuration, length, automation level or product information, connect directly with the Viva Engineering team.
